18V Cordless Impact Driver WH18DJL
18V and max torque: 145Nm (1,280in.-lbs.)
Light weight and compact body
Overall Length : 166mm (6-17/32")
Weight : 1.4kg (3.1lbs.) with BSL1815S / BSL1825, 1.6kg (3.5lbs.) with BSL1830

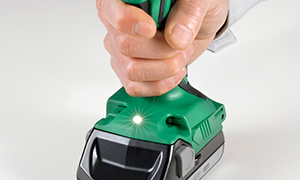

Built-in white LED light
-
The LED Light automatically keeps on lighting while the trigger switch is being pulled.
Slim and soft grip handle
-
Fits user's hand comfortably.

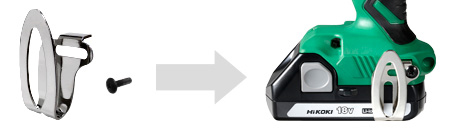

Optional hook can be attached
-
Convenient hook is available.
Optional Accessory
Hook set : Code No. 337131

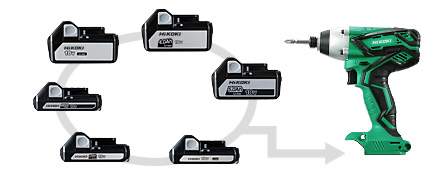

Selectable battery from 1.3Ah to 5.0Ah
-
Compatible with not only the standard batteries BSL1815S (1.3Ah),
BSL1825 (2.5Ah) and BSL1830 (3.0Ah) but also optional Our 18V high capacity
BSL1840 (4.0Ah) and BSL1850 (5.0Ah) Lithium-ion batteries.
Specifications
| Capacity: Bolt | 6-14mm (1/4-9/16") |
|---|---|
| Capacity: High Tension Bolt | 6-12mm (1/4-15/32") |
| Capacity: Machine Screw | 4-8mm (5/32-5/16") |
| Drive | 6.35mm (1/4") Hex Bit Shank |
| Tightening Torque | 145Nm (1,280in.-lbs) |
| Battery Voltage | 18V |
| No Load Speed | 0-2,400/min. |
| Full Load Impact Rate | 0-3,200/min. |
| Overall Length | 166mm (6-17/32") |
| Weight* | 1.4kg (3.1lbs.) with BSL1815S / BSL1825 1.6kg (3.5lbs.) with BSL1830 |
| Standard Accessories | 2 Batteries (BSL1815S or BSL1825 or BSL1830), Charger (UC18YKSL or UC18YFSL), Battery Cover, Carrying Case |
- According to EPTA-Procedure 01/2003
Charging Time for Compatible Batteries
| Battery | Type | |||||
|---|---|---|---|---|---|---|
| Voltage | Type | Capacity*1 | Cooling Windows |
UC18YGSL UC18YKSL |
UC18YRSL*2 UC18YFSL*2 |
UC18YML2*2 (AC/DC)*3 |
| 18V | BSL1815 | 1.5Ah | ● | 40min. | 22min. | 22/60min |
| BSL1815X | 1.5Ah | ● | 40min. | 22min. | 22/60min | |
| BSL1820 | 2.0Ah | ● | 60min. | 30min. | 30/80min | |
| BSL1825 | 2.5Ah | ● | 75min. | 35min. | 35/100min | |
| BSL1830 | 3.0Ah | ● | 90min. | 45min. | 45/120min | |
| BSL1840 | 4.0Ah | ● | 120min. | 60min. | 60/160min | |
| BSL1850 | 5.0Ah | ● | 150min. | 75min. | 75/200min | |
- The figures of battery capacity are nominal values.
- With cooling fan.
- Two-way AC/DC charger usable with in-car power source.
Note: Manufacturer reserves the right to change specifications of parts and accessories
without notice. Specifications and standard
accessories may vary from country to country.
