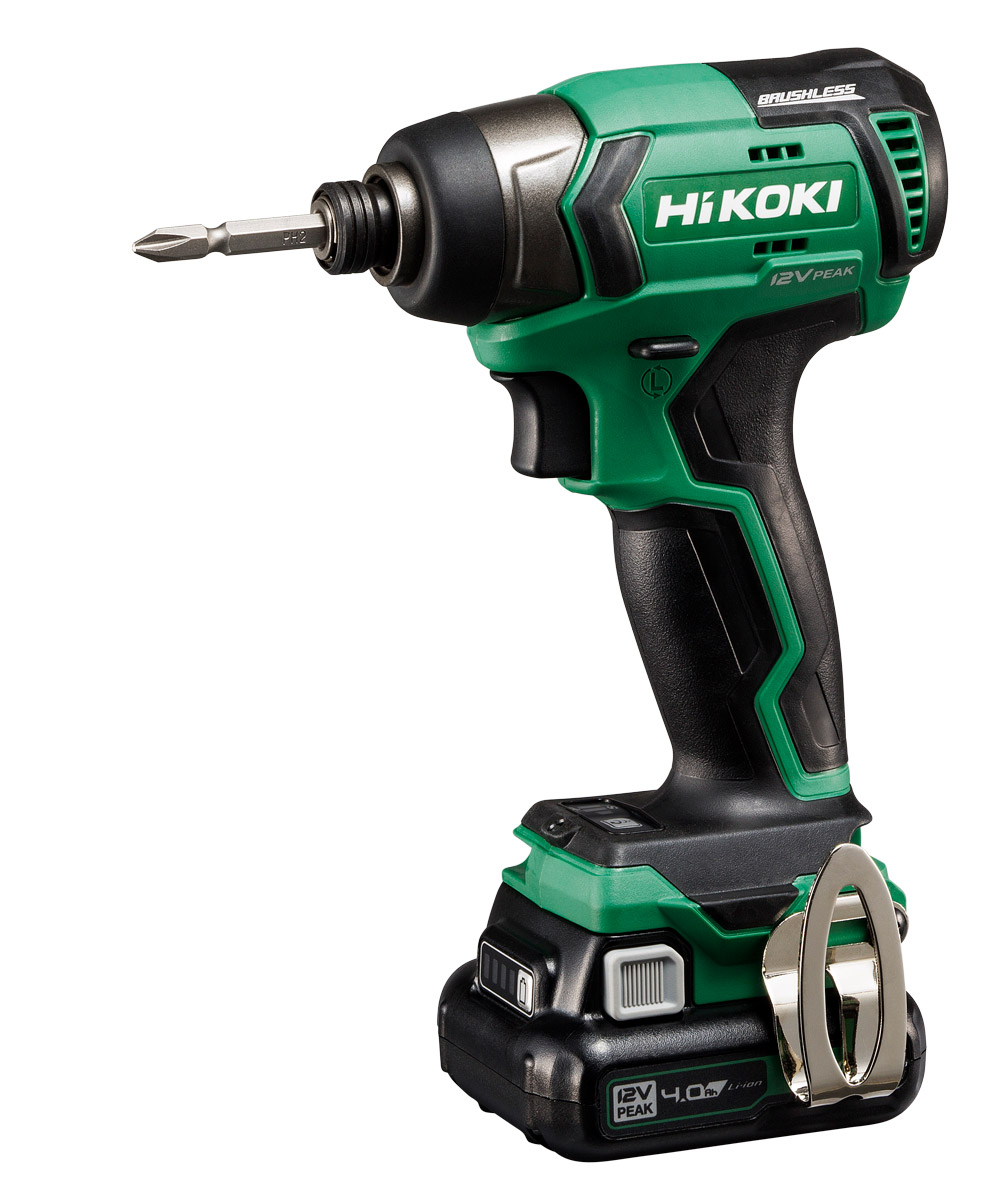

10.8 - 12V Peak Cordless Impact Driver WH12DD
Super Easy to Work with
-
Versatile and Compact with the Shortest* Head in its Class
- As of November 2018, among 10.8V cordless impact drivers made by leading power tool manufacturers. (Survey by Koki Holdings)
Runtime per Charge *
Approx. 500 Wood Screws
ø3.8 x 50mm screws in lauan without pilot holes
- With the BSL1240M battery. The values are shown for reference purposes. They may vary according to conditions.
Other Features
- 3 Tightening Modes (Soft / Power / Self-drilling Screw)
- LED Light
12V PEAK Slide Lithium-Ion Batteries
-
4.0Ah / BSL1240M
High-Capacity -
2.5Ah / BSL1225M
-
1.5Ah / BSL1215
Lightweight. Compact. High-Capacity.
Clear Battery Status Indication (BSL1240M / BSL1225M only)
-
The remaining battery indicator lamp shows not only charge level but also battery overheating and failure when they occur.
| Indicator Lamp |  Solid |
 Solid |
 Solid |
 Solid |
 Flashing |
|---|---|---|---|---|---|
| Battery Charge State | 75% and above | 50% - below 75% | 25% - below 50% | Below 25% | 0% |
| Indicator Lamp |  Flashing |
 Flashing |
|---|---|---|
| Battery Charge State | Output suspended due to high temperature*1 | Output suspended due to failure*2 |
- Remove the battery from the tool and allow it to cool down fully.
- The problem may be with the battery so please contact your dealer.
Class-leading* Charging Speed
-
Approx. 60min with BSL1240M Battery
Approx. 37min with BSL1225M Battery
Approx. 22min with BSL1215 Battery
UC12SL
Fast Charger
- As of November 2018, among 10.8V slide Lithium-ion batteries made by leading power tool manufacturers. (Survey by Koki Holdings)
BSL1240M / BSL1225M / BSL1215 12V Peak Slide Lithium-ion Battery
| Model | BSL1240M | BSL1225M | BSL1215 |
|---|---|---|---|
| Voltage | 10.8 - 12V Peak | ||
| Capacity | 4.0Ah | 2.5Ah | 1.5Ah |
| Charging Time at 20℃* | Approx. 60min (with UC12SL) |
Approx. 37min (with UC12SL) |
Approx. 22min (with UC12SL) |
| Dimensions (L x H x W) | 91 x 45 x 74mm | 86 x 42 x 65mm | 86 x 42 x 65mm |
| Compatible Charger | UC12SL | ||
- The charging time may vary depending on the operating conditions and battery state.
Specifications
| Drive | 6.35mm | |
|---|---|---|
| Capacity | Small Screw | 4 - 8mm |
| Ordinary Bolt | 5 - 14mm | |
| High Tension Bolt | 5 - 12mm | |
| Self Drilling Screw | ø3.5 - ø5mm | |
| Tightening Torque | 135Nm | |
| Battery Voltage | 10.8 - 12V Peak | |
| No Load Speed | Soft Mode | 0 - 1,300/min |
| Power Mode | 0 - 3,200min | |
| Self-drilling Screw Mode | 0 - 3,200min | |
| Impact Rate | Soft Mode | 0 - 2,500/min |
| Power Mode | 0 - 4,000min | |
| Self-drilling Screw Mode | 0 - 4,000min | |

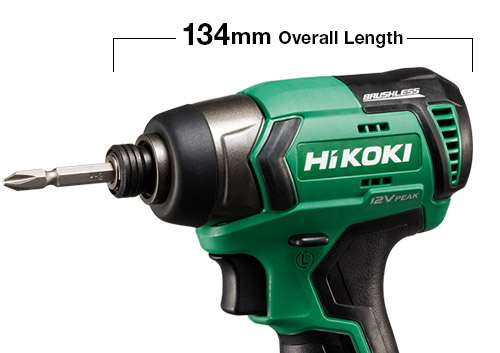

| Overall Length | 134mm | |
| Weight *1 | 1.1kg | |
| Standard Accessories *2 | 2 Batteries (BSL1240M), Charger (UC12SL), Battery Cover, Carrying Case | |
- According to EPTA-Procedure 01/2014.
- Standard accessories vary by country or area.
Note: Manufacturer reserves the right to change specifications of parts and accessories without notice. Specifications and standard accessories may vary from country to country.
