14.4V and 18V Cordless Worklight UB18DJL

14.4V and 18V Cordless Worklight UB18DJL

Selectable light modes according to situations

Switch enables to change light mode.

Switch enables to change light mode

Worklight : Adjustable light angle

  • The work light portion can be moved vertically and horizontally to adjust the light orientation.

    Adjustable light angle

Worklight : 3-stage brightness

Switch enables to change 3-stage brightness.

3-stage brightness

Torchlight : Incredible brightness due to max brightness 6,000lx

Long lighting time

Lighting time per charge * with BSL1850 (5.0Ah)

  •   Worklight (in Low mode) :Approx. 51 hours

      Torchlight : Approx. 43 hours

    • Lighting time per charge may vary according to types of batteries and operating conditions.

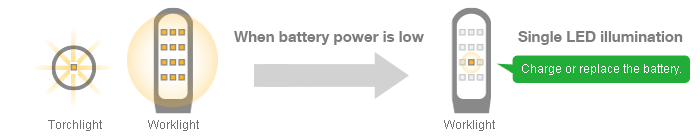

Battery protection function prevents the light from going out suddenly

When battery power drops to a specified level, the worklight will switch over to single LED illumination, preventing the light from going out suddenly.

Battery protection function prevents the light from going out suddenly

(For torchlight too, when battery protection function runs, the worklight will switch over to single LED illumination.)

With hooks for hanging the unit

  • Use the storage hook or strap hook when hanging the unit from a pipe or the like.

    With hooks for hanging the unit

Lighting time per charge *1

Battery *2 Torchlight Worklight
High mode Medium mode Low mode
18V BSL1825 2.5Ah Approx. 22 hours Approx. 8 hours Approx. 15 hours Approx. 26 hours
BSL1840 4.0Ah Approx. 35 hours Approx. 13 hours Approx. 24 hours Approx. 41 hours
BSL1850 5.0Ah Approx. 43 hours Approx. 16 hours Approx. 30 hours Approx. 51 hours
14.4V BSL1425 2.5Ah Approx. 18 hours Approx. 8 hours Approx. 14 hours Approx. 25 hours
BSL1440 4.0Ah Approx. 30 hours Approx. 12 hours Approx. 23 hours Approx. 39 hours
BSL1450 5.0Ah Approx. 37 hours Approx. 15 hours Approx. 28 hours Approx. 49 hours

Specifications

Battery*2 Voltage 14.4V and 18V
Torchlight: Brightness / Measured distance 6,000lx/1m
Torchlight: LED lamp 3W x 1pc.
Worklight: Brightness / Measured distance High: 110lx/1m
Medium: 55lx/1m
Low: 27lx/1m
Worklight: LED lamp 0.5W x 12pcs.
Dimensions (L x W x H)*3 205 x 78 x 108mm (8-1/16" x 3-1/16" x 4-1/4")
Weight*3 0.3 kg (0.7 lbs.)
Standard Accessories Hook, Strap Hook
  1. Runtime per charge may vary according to types of batteries and operating conditions.
  2. Sold separately.
  3. Without battery.

Charging Time for Compatible Batteries

Battery Charger
Voltage Type Capacity*1 Cooling
Windows
UC18YGSL
UC18YKSL
UC18YRSL*2
UC18YFSL*2
UC18YML2*2
(AC/DC)*3
14.4V BSL1415 1.5Ah 40min. 22min. 22/60min
BSL1415X 1.5Ah 40min. 22min. 22/60min
BSL1420 2.0Ah 60min. 30min. 30/80min
BSL1425 2.5Ah 75min. 35min. 35/100min
BSL1430 3.0Ah 90min. 45min. 45/120min
BSL1440 4.0Ah 120min. 60min. 60/160min
BSL1450 5.0Ah 150min. 75min. 75/200min
18V BSL1815 1.5Ah 40min. 22min. 22/60min
BSL1815X 1.5Ah 40min. 22min. 22/60min
BSL1820 2.0Ah 60min. 30min. 30/80min
BSL1825 2.5Ah 75min. 35min. 35/100min
BSL1830 3.0Ah 90min. 45min. 45/120min
BSL1840 4.0Ah 120min. 60min. 60/160min
BSL1850 5.0Ah 150min. 75min. 75/200min
  1. The figures of battery capacity are nominal values.
  2. With cooling fan.
  3. Two-way AC/DC charger usable with in-car power source.

Note: Manufacturer reserves the right to change specifications of parts and accessories without notice. Specifications and standard accessories may vary from country to country.
