DH18DBDL : Power Tools

Cordless Rotary Hammers with Dust Extractor System DH18DBDL / DH18DBML

DH18DBDL

CAUTION REGARDING LITHIUM-ION BATTERY TRANSPORTATION

Our Original Brushless Motor Technology
- No wearing parts (carbon brushes, commutator, field coil)
- Our original compact controller
Long Lifetime, Maintenance-Free

The brushless motor offers a significantly extended product life cycle by eliminating trouble including armature burnout, layer short or commutator wear even in severe work environments. Besides, no carbon brush replacement is required.

Compact, Lightweight

Top-Class *1 Capabilities

The highly efficient brushless motor and the optimized hammering mechanism achieves the top-class*1 drilling speed (up to 40% faster *2) and demolition performance (up to 4.6kg / 5min.*3).
1. As of August 2016. Among 18V cordless rotary hammers made by leading power tool manufacturers (surveyed by Koki Holdings.)
2. A comparison between the DH18DBDL (with the dust extractor system uninstalled) and the previous model DH18DSL (Actual performance results may vary depending on operating conditions.).
3. Actual performance results may vary according to the hardness of the concrete and other operational conditions.

Dust Extractor System

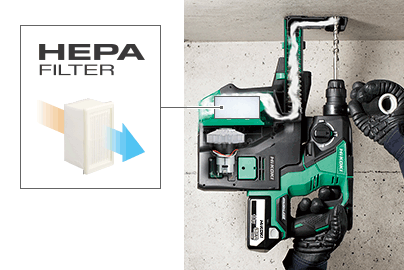

High-Efficiency Particulate Air (HEPA) Filter

High-Efficiency Particulate Air filter ensures clean air exhaust.

Brush Cap

Brush cap and nozzle seal mounted to minimize the escape of dust.

Drilling Depth Stop

adjustable up to 85mm

Compatible drill bit
Diameter: 4.3-20mm
Effective length: 50-100mm

Detachable Dust Box

allows easy dust disposal

Delayed Stop Function

The dust extractor system's internal motor stops after a delay of several seconds from when the tool's switch is released, so that it can vacuum remaining dust particles in the internal parts.

Cross Platform Compatibility

The dust extractor system included with the DH18DBDL fits on the DH18/36DBL. The one included with the DH18DBML fits on the DH18/36DBQL.

Improved Handling

Pic.1: The grip of the handle and the drill bit head are on the same line of action, which makes applying force to the drill easier.
Pic.2: The grip of the handle is close to the center of gravity for easier handling.

Top-Class Runtime *1

Number of 40mm deep holes drilled into concrete with a ø 8.5 drill bit
Up to 115 holes per charge with the dust extractor system
Up to 170 holes per charge without the dust extractor system
1. As of August 2016. Among 18V cordless rotary hammers made by leading power tool manufacturers (surveyed by Koki Holdings.)
2. Included batteries and charger vary by country or area.

Reactive Force Control(RFC)

When the tool bit is suddenly overburdened during operation, the slip clutch works or the tool's built-in controller stops the motor's output before the entire tool jerks.

Caution

Depending on operating conditions, the Reactive Force Control function may not work or may not provide the specified performance. Make sure that the workpiece is placed and supported properly, and that the main unit is held firmly during operation.

Convenient Carrying Case

can store the hammer with the dust extraction system attached.
(The side handle has to be detached.)

Quick-Release Tool Retainer

allows for fast change between the SDS-plus drill bit holder and the drill chuck holder (DH18DBML only).

Note : Turn the change lever to "Hammering only" mode when replacing a tool retainer with another.
Use the machine only in "Rotation only" mode when the drill chuck holder installed.

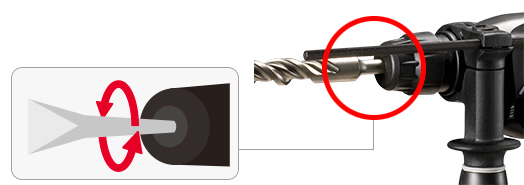

Multiple Bit-Angle Settings

The chisel can be rotated in multiple angles with the change lever positioned at 'neutral'.

Fast Charging Offered by Our Original Charging Technology

Built-in cooling system of the UC18YSL3 charger reduces charging time by efficiently cooling both the battery and charger at the same time during charging.

Charging time is 6.0Ah Approx. 38mins, 5.0Ah Approx. 32mins.

* Included batteries vary by country or area.

Other Features of the UC18YSL3 Charger

Large charge indicator lamp with 4 color status LED and sound alert once charging is complete
USB port (5V 2A)
Capable of charging at low temperature (-10°C and above)

CAUTION
REGARDING LITHIUM-ION BATTERY
TRANSPORTATION

Notify the transporting company that a package contains a lithium-ion battery, inform the company of its power output and follow the instructions of the transportation company when arranging transport.

Lithium-ion batteries that exceed a power output of 100Wh are considered to be in the freight classification of Dangerous Goods and will require special application procedures.
For transportation abroad, you must comply with international law and the rules and regulations of the destination country.

Specifications

Model			DH18DBDL *1
Capacity		Concrete	20mm (25/32")
Bit Shank			SDS-plus
Battery	Voltage		18V
Battery	Power Output	BSL1850	90Wh
No Load Speed			0 - 1,050/min
Full Load Impact Rate			0 - 3,950/min
Overall Length			493mm (19-13/32")
Weight *2			5.5kg (12.1lbs.)
Vibration Total Values (triax vector sum) *3		Hammer drilling into concrete	Vibration emission value ah, HD = 14.5 m/s²
Vibration Total Values (triax vector sum) *3		Hammer drilling into concrete	Uncertainty K = 1.5 m/s²
Standard Accessories *4			Dust Extractor System
			2 Batteries (BSL1850), Charger (UC18YFSL)
			Side Handle, Depth Gauge, Battery Cover, Carrying Case

Specifications are for when a dust extraction unit has been installed. When used with the dust extraction unit uninstalled, the specifications are the same as those for the DH18DBL.
Weight according to EPTA Procedure 01/2003.
Vibration Total Values (triax vector sum) determined according to EN60745.
Included batteries and charger vary by country or area.
