Cordless Impact Driver Drills DV14DBL2 / DV18DBL2

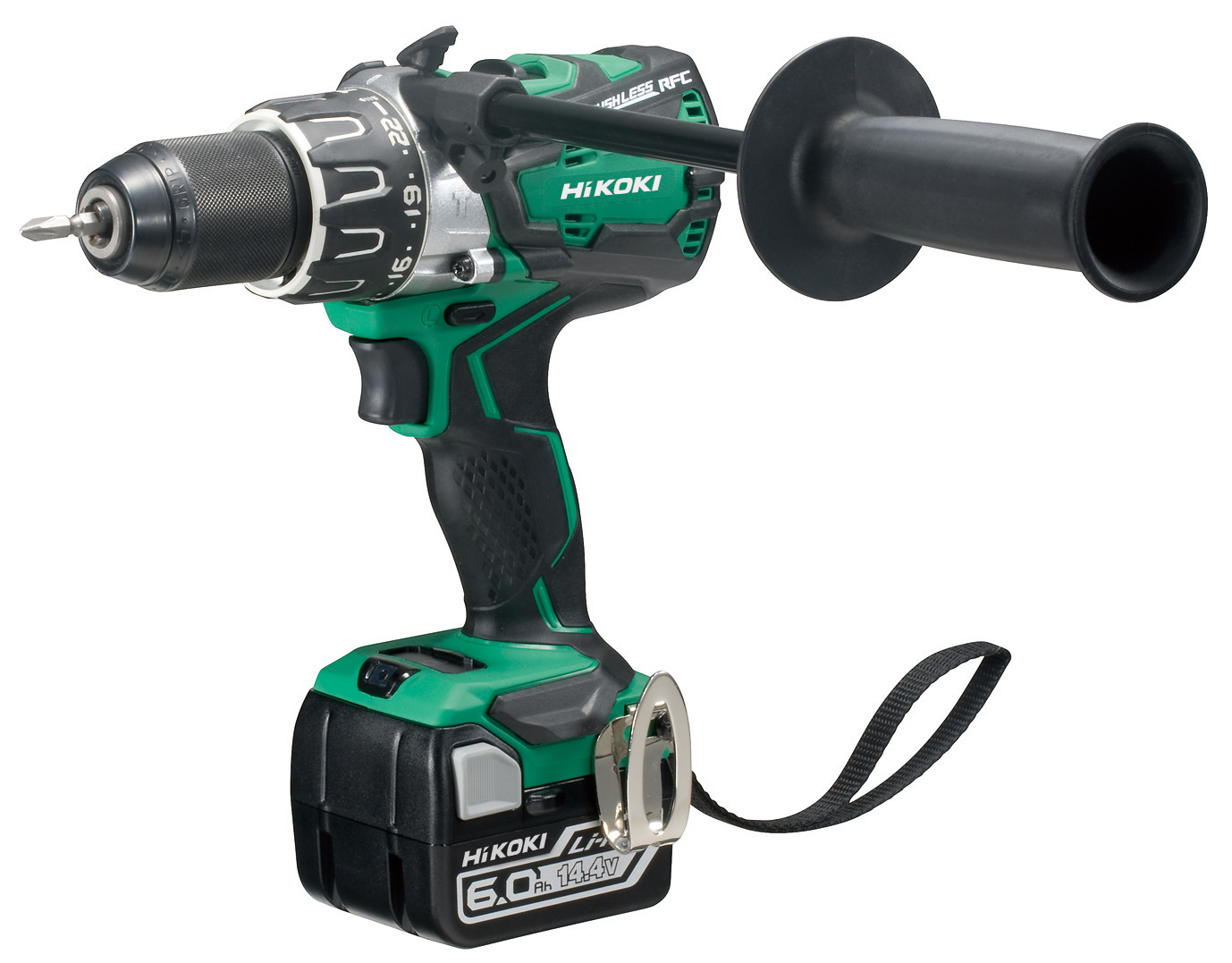

  • DV14DBL2/DV18DBL2 Cordless Impact Driver Drills

    DV14DBL2

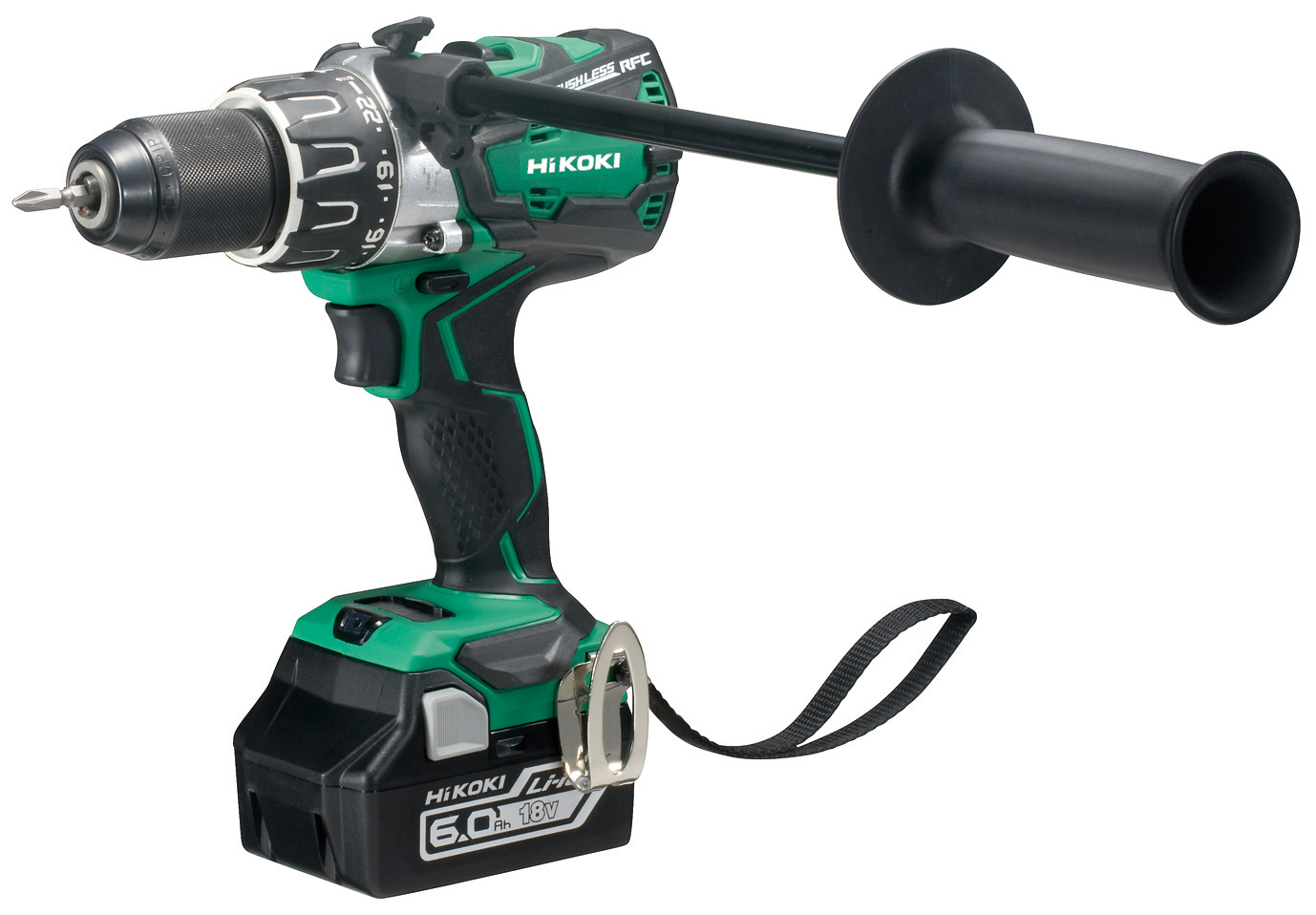

  • DV14DBL2/DV18DBL2 Cordless Impact Driver Drills

    DV18DBL2

WARNINGCAUTION REGARDING LITHIUM-ION BATTERY TRANSPORTATION

Most powerful * torque and fastest * application speeds in its class
due to large brushless motor and optimized gear ratio

  • Most powerful torque in its class and Fastest application speeds in its class
    • As of December 2015. Among 14.4V/18V cordless impact driver drills made by leading power tool manufactures.(surveyed by Koki Holdings.)
    Application
    (Drilling)    		 Siding Steel Wood Brick
    Siding Steel Wood Brick
    DV18DBL2 170mm 13mm 76mm 16mm
    DV14DBL2 120mm 13mm 65mm 14mm

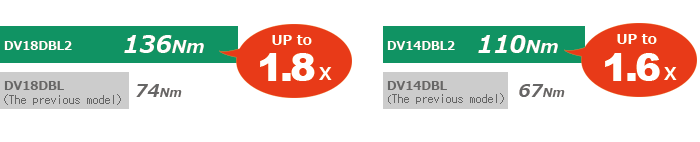

Most powerful *1 torque in its class
Max torque hard: 136Nm *2 (DV18DBL2) / 110Nm *3 (DV14DBL2)

  • Most powerful torque in its class
    1. As of December 2015. Among 14.4V/18V cordless impact driver drills made by leading power tool manufactures.
      (surveyed by Koki Holdings.)
    2. With the BSL1860/BSL1850 battery.
    3. With the BSL1460/BSL1450 battery.

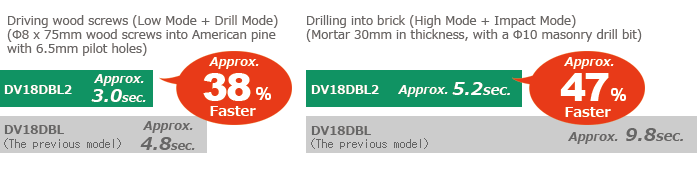

Best in class *1 application speeds *2

  • Best in class application speeds
    1. As of December 2015. Among 14.4V/18V cordless impact driver drills made by leading power tool manufactures.
      (surveyed by Koki Holdings.)
    2. The values are for reference purposes. They vary according to the work material and conditions.

Runtime per charge (approx.) *1

Model Number of screws driven in wood *2
(Low Mode + Drill Mode)		 Number of holes drilled in brick *3
(High Mode + Impact Mode)
DV14DBL2 6.0Ah(BSL1460) Approx.360 screws Approx.185 holes
5.0Ah(BSL1450) Approx.300 screws Approx.155 holes
DV18DBL2 6.0Ah(BSL1860) Approx.380 screws Approx.220 holes
5.0Ah(BSL1850) Approx.320 screws Approx.185 holes
  1. The values are for reference purposes. They vary according to the work material and conditions.
  2. ø 8 x 75mm wood screws into American pine (with 6.5mm pilot holes)
  3. Mortar 30mm in thickness, with a ø 10 masonry drill bit

Double-molded, large clutch dial

  • The clutch dial is clearly readable even when it's worn out. It's also easy to grip for better handling.

    Double-molded, large clutch dial

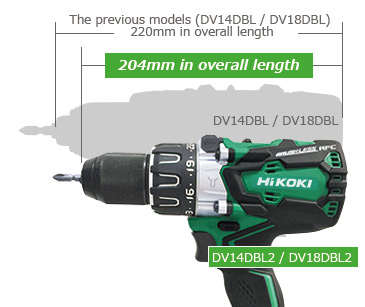

Compact at 204mm

  • More compact than the previous models (DV14DBL / DV18DBL).

    Compact at 204mm

Feedback speed control

reduces torque (rpm) fluctuation in a low speed range and ensures stable operation. This makes follow-up tightening and drill positioning easier. (Continuous work within a low speed range may cause the temperature of the unit to rise, activating a temperature protection circuit and automatically stopping operation.)

Reactive Force Control (RFC)

When the tool bit is suddenly overburdened during operation, a tool's built-in control stops the motor to lessen the twisting of the operator's arms.

Caution
Depending on operating conditions, Reactive Force Control may not work or may not provide the specified performance. Make sure that the workpiece is placed and supported properly, and that the main unit is held firmly during operation.

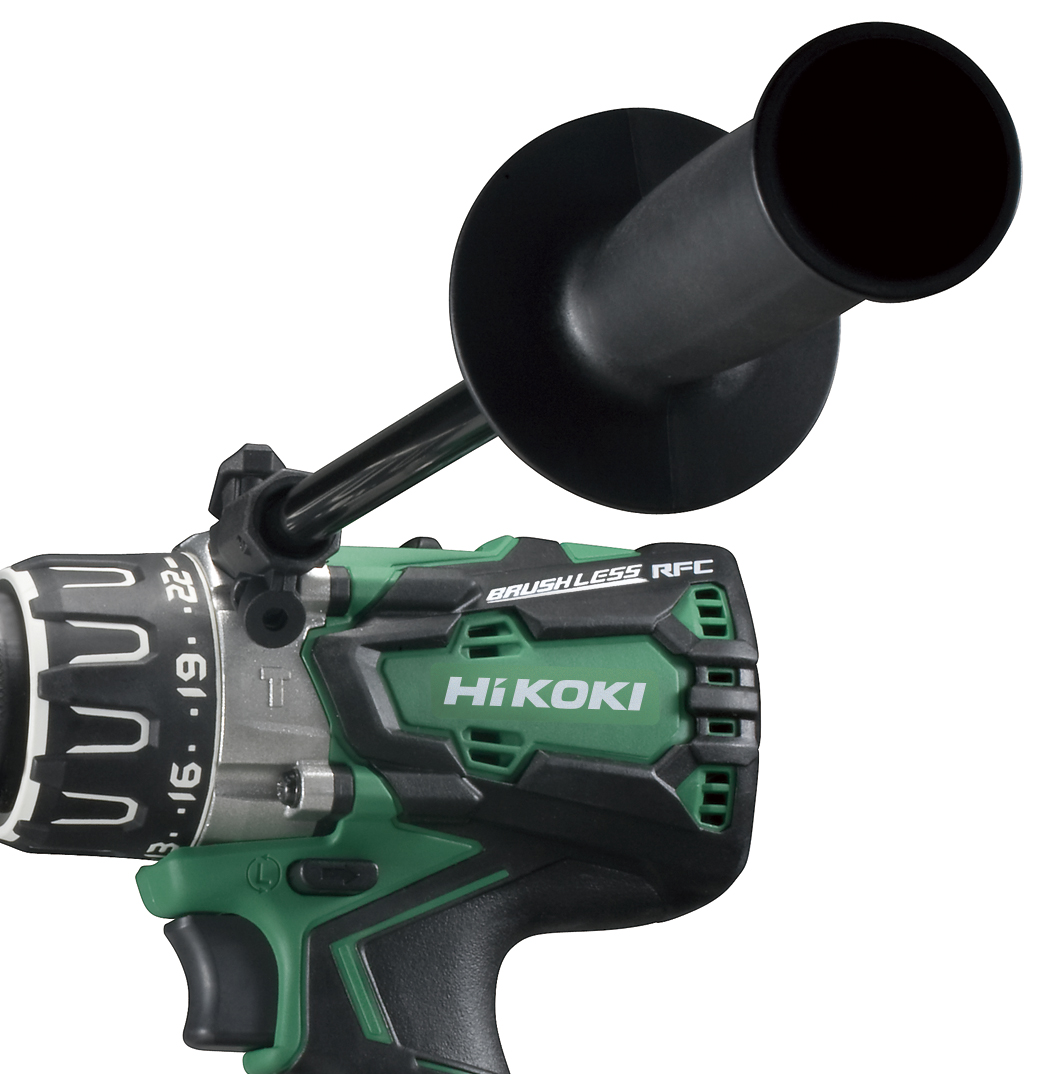

Longer side handle

  • for more stable operation.

    Longer side handle

Specifications

Model DV14DBL2 DV18DBL2
Drill Chuck 1.5 - 13mm (1/16 - 1/2") Keyless
Capacity Brick 14mm (9/16") 16mm (5/8")
Mild Steel 13mm (1/2")
Soft Wood 65mm (2-9/16") 76mm (3")
Wood Screw 8 x 100mm (#20 x 4") 10 x 90mm (#24 x 3-1/2")
Machine Screw 6mm (1/4")
Battery Voltage 14.4V 18V
Power Output *1 87Wh for BSL1460 (6.0Ah)
72Wh for BSL1450 (5.0Ah)
44Wh for BSL1430 (3.0Ah)		 108Wh for BSL1860 (6.0Ah)
90Wh for BSL1850 (5.0Ah)
54Wh for BSL1830 (3.0Ah)
45Wh for BSL1825 (2.5Ah)
No Load Speed High 0 - 1,800/min 0 - 2,100/min
Low 0 - 400/min 0 - 500/min
Impact Rate 0 - 27,000/min 0 - 31,500/min
Max Torque Hard 110Nm (975in.-lbs.) *2 136Nm (1,205in.-lbs.) *3
Max Torque Soft 40Nm (354in.-lbs.) *2 62Nm (549in.-lbs.) *3
Torque Setting 2 - 8Nm (18 - 71in.-lbs.)
Overall Length 204mm (8-1/32")
Weight *4 2.3kg (5.1lbs.) with BSL1460/BSL1450/BSL1430 2.5kg (5.5lbs.) with BSL1860/BSL1850/BSL1830
2.3kg (5.1lbs.) with BSL1825
Vibration Total Values
(triax vector sum) *5		 Impact Drilling
into Concrete		 Vibration Emission Value ah, ID = 7.8m/s2
Uncertainty K = 1.5m/s2		 Vibration Emission Value ah, ID = 11.7m/s2
Uncertainty K = 1.5m/s2
Standard Accessories 2 Batteries (BSL1460, BSL1450 or BSL1430), Charger (UC18YFSL or UC18YSL3), Side Handle, Driver Bit, Battery Cover, Carrying Case 2 Batteries (BSL1860, BSL1850, BSL1830 or BSL1825), Charger (UC18YFSL or UC18YSL3), Side Handle, Driver Bit, Battery Cover, Carrying Case
  1. The figures of battery power output are nominal values.
  2. With the BSL1460/BSL1450 battery.
  3. With the BSL1860/BSL1850 battery.
  4. According to EPTA-Procedure 01/2003.
  5. The tri-axial vibration values were measured according to EN60745-2-1.
CAUTION REGARDING LITHIUM-ION BATTERY TRANSPORTATIONCAUTION
REGARDING LITHIUM-ION BATTERY
TRANSPORTATION

Notify the transporting company that a package contains a lithium-ion battery, inform the company of its power output and follow the instructions of the transportation company when arranging transport.

  • Lithium-ion batteries that exceed a power output of 100Wh are considered to be in the freight classification of Dangerous Goods and will require special application procedures.
  • For transportation abroad, you must comply with international law and the rules and regulations of the destination country.

Charging Time (Approx.)

Battery Charger
Voltage Type Capacity UC18YFSL UC18YSL3
14.4V BSL1430 3.0Ah 45min 20min
BSL1450 5.0Ah 75min 32min
BSL1460 6.0Ah 90min 38min
18V BSL1825 2.5Ah 35min 25min
BSL1830 3.0Ah 45min 20min
BSL1850 5.0Ah 75min 32min
BSL1860 6.0Ah 90min 38min
  • Please contact local dealers for product availability and product details.
