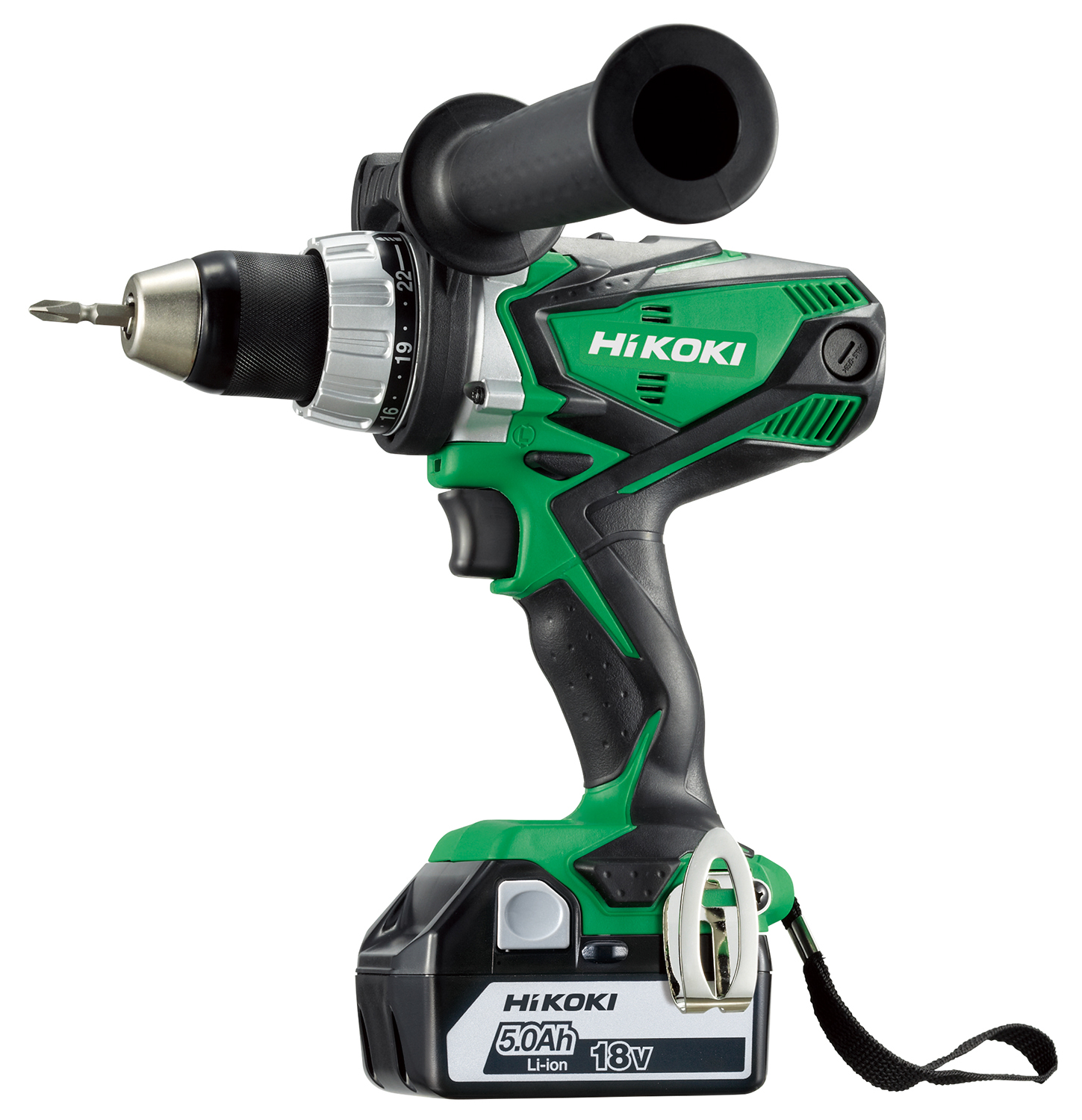

18V Cordless Driver Drill DS18DSDL

DS18DSDL 18V Cordless Driver Drill

Features

  • High capacity 5.0Ah / 6.0Ah Lithium-ion battery
  • Includes 2 slide Lithium-ion batteries and charger
  • Durable aluminum cover
  • Fan-cooled motor and 2-speed gear
  • 13mm keyless chuck
  • Capacity for mild steel 13mm
  • Adjustable clutch: 22-stage torque
  • Belt hook
  • LED light on body
  • Remaining battery indicator lamp

Specifications

Drill Chuck 1.5 - 13mm (1/16 - 1/2") Keyless
Capacity: Mild Steel 13mm (1/2")
Capacity: Soft Wood 65mm (2-9/16")
Capacity: Wood Screw 8 x 100mm (#20 x 4")
Capacity: Machine Screw 6mm (1/4")
Battery Voltage 18V
No Load Speed:High 0 - 1,600/min.
No Load Speed:Low 0 - 350/min.
Max Torque Hard 92Nm (814 in.-lbs.)
Max Torque Soft 46Nm (407 in.-lbs.)
Torque Setting 2 - 8Nm (18 - 71in-lbs.)
Overall Length 228mm (8-31/32")
Weight 2.1kg (4.6lbs.)
Standard Accessories 2 Batteries (BSL1840 or BSL1830), Charger (UC18YRSL or UC18YML2 *2), Side Handle, Driver Bit, Battery Cover, Carrying Case
  1. Combinations of battery and charger may vary by countries or areas.
  2. Two-way AC-DC charger usable with in-car power source.

Charging Time for Compatible Batteries

Battery Type
Voltage Type Capacity*1 Cooling
Windows		 UC18YGSL
UC18YKSL		 UC18YRSL*2
UC18YFSL*2		 UC18YML2*2
(AC/DC)*3
18V BSL1815 1.5Ah ● 40min. 22min. 22/60min
BSL1815X 1.5Ah ● 40min. 22min. 22/60min
BSL1820 2.0Ah ● 60min. 30min. 30/80min
BSL1825 2.5Ah ● 75min. 35min. 35/100min
BSL1830 3.0Ah ● 90min. 45min. 45/120min
BSL1840 4.0Ah ● 120min. 60min. 60/160min
BSL1850 5.0Ah ● 150min. 75min. 75/200min
  1. The figures of battery capacity are nominal values.
  2. With cooling fan.
  3. Two-way AC/DC charger usable with in-car power source.

Note: Manufacturer reserves the right to change specifications of parts and accessories without notice. Specifications and standard accessories may vary from country to country.

  • Please contact local dealers for product availability and product details.
