14.4V/18V Cordless Driver Drills with Brushless Motor DS14DBSL/DS18DBSL

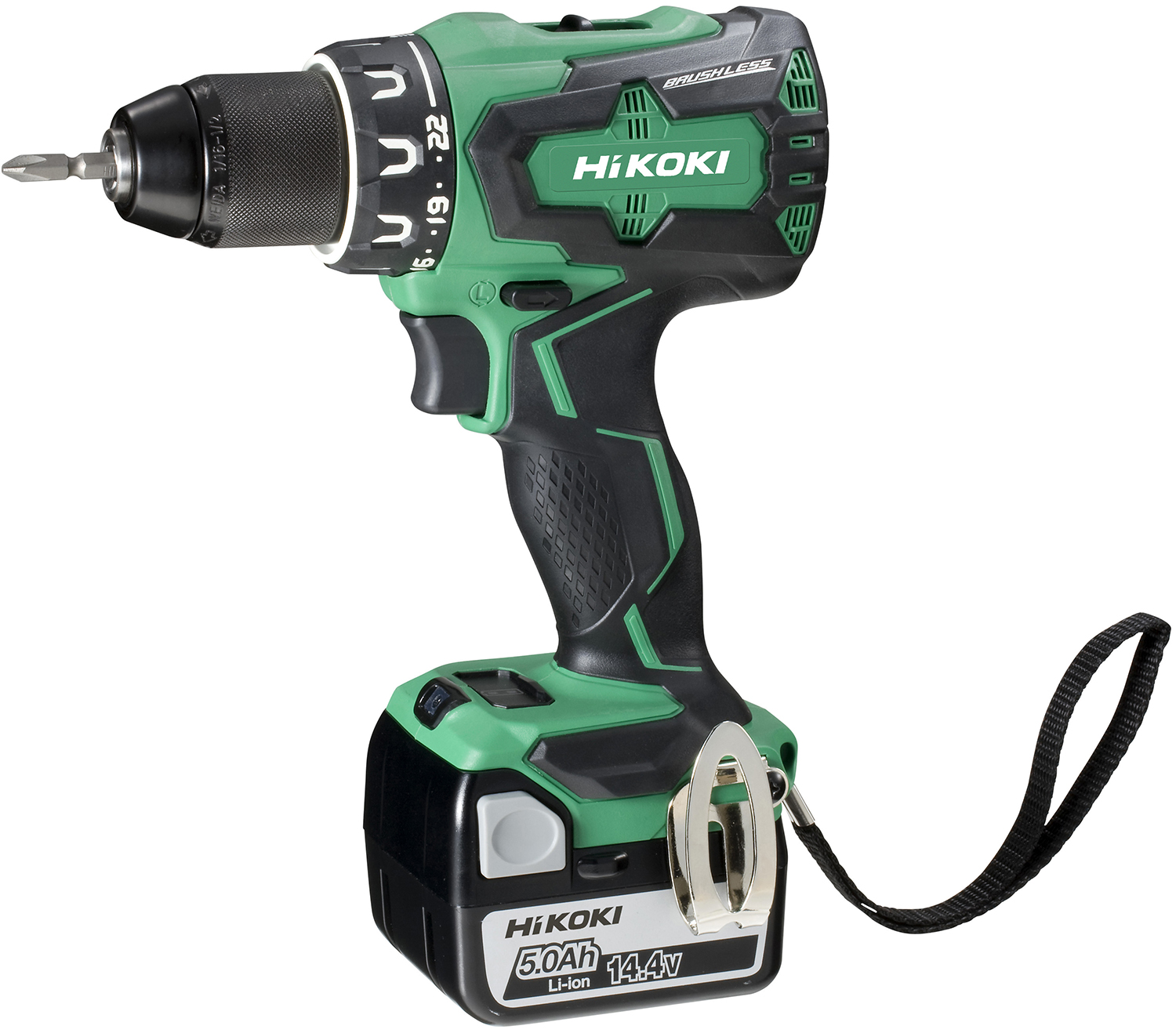

  • DS14DBSL Cordless Driver Drills with Brushless Motor

    DS14DBSL

  • DS18DBSL Cordless Driver Drills with Brushless Motor

    DS18DBSL

The Large Dia. Brushless Motor and Optimized Gear Ratio Offers...

Most Powerful *1 Torque in its class & Significantly Increased Application Speeds

Illustration of the large dia. brushless motor and optimized gear ratio
  1. Except for the Max Torque Hard of the DS18DBSL. As of September 2016. Among 14.4V/18V cordless driver drills made by leading power tool manufacturers (surveyed by Koki Holdings.)
  2. Compared to the previous models DS18DBEL
  3. Compared to the previous models DS14DBEL
  4. When drilling (in High Mode + Drill Mode) into SPF 76mm in thickness with a ø24mm (DS18DBSL) / ø20mm (DS14DBSL) auger bit.
Application (Drilling) Wood Steel
Wood Steel
DS18DBSL 50mm 13mm
DS14DBSL 45mm 13mm

Runtime per Charge (approx.) *1

Number of screws driven in wood (Low Mode + Drill Mode)

DS14DBSL(5.0Ah/BSL1450)FApporox.167 screws*2, DS18DBSL(5.0Ah/BSL1850)FApporox.138 screws*3
  1. The values are for reference purposes. They vary according to the work material and conditions.
  2. ø8 x 75mm wood screws into American pine (with 6.5mm pilot holes)
  3. ø8 x 100mm wood screws into American pine (with 6.5mm pilot holes)

Compact Design with a Shorter Overall Length

  • DS18DBSL / DS14DBSL: 175mm *
    DS18DBEL / DS14DBEL: 202mmm

    1. The overall length varies by region.
    27mm Shoter

Double-Molded, Large Clutch Dial

  • is clearly readable even when it's worn out.
    It's also easy to grip for better handling.

    Image of large clutch dial

Feedback Speed Control

reduces torque (rpm) fluctuation in a low speed range and ensures stable operation.
This makes follow-up tightening and drill positioning easier.
(Continuous work within a low speed range may cause the temperature of the unit to rise, activating a temperature protection circuit and automatically stopping operation.)

  • Our Original Brushless Motor Technology

    ► No wearing parts (carbon brushes, commutator, field coil)
    ► Our original compact controller

    Long Lifetime, Maintenance-Free

    The brushless motor offers a significantly extended product life cycle by eliminating trouble including armature burnout, layer short or commutator wear even in severe work environments. Besides, no carbon brush replacement is required.

Specifications

Model DS18DBSL DS14DBSL
Drill Chuck 1.5 - 13mm (1/16 - 1/2") Keyless
Capacity Mild Steel 13mm (1/2")
Soft Wood 50mm (2") 45mm (1-3/4")
Wood Screw 8 x 100mm (#20 x 4") 8 x 75mm (#20 x 3")
Machine Screw 6mm (1/4")
Battery Voltage 18V 14.4V
No Load Speed High 0 - 1,800/min. 0 - 1,500/min.
Low 0 - 400/min. 0 - 350/min.
Max Torque Hard 70Nm (620in-lbs.) 60Nm (530in-lbs.)
Soft 40Nm (354in-lbs.) 35Nm (310in-lbs.)
Torque Setting 1.0 - 4.5Nm (9 - 40in-lbs.)
Overall Length *1 175mm (6-7/8")
Weight *2 1.6kg (3.5lbs.)
(with BSL1830C)		 1.6kg (3.5lbs.)
(with BSL1430C)
Vibration Total Values
(triax vector sum) *3		 Drilling into Metal Vibration Emission Value ah, ID < 2.5m/s2
Uncertainty K = 1.5m/s2
Standard Accessories *4 2 Batteries (BSL1850, BSL1830C or BSL1830),
Charger (UC18YFSL, UC18YSL3 or UC18YKSL)		 2 Batteries (BSL1450, BSL1430C or BSL1430),
Charger (UC18YFSL or UC18YKSL)
Driver Bit, Battery Cover, Carrying Case
  1. The overall length varies by region.
  2. According to EPTA-Procedure 01/2003.
  3. Vibration total values (triax vector sum) were measured according to EN60745-2-1.
  4. The included batteries and charger vary by country or area.
