13mm (1/2") Drill D13VL
-
-
Keyed chuck or keyless chuck available by country or area.
Aluminium Housing Body
The internal double-insulation construction with an aluminium die-cast body and a plastic stator holder
Due to the internal double-insulation construction with a plastic stator holder and an aluminium die-cast body which firmly holds the armature shaft, the durability of the motor and the tool body has remarkably improved.
Powerful 860W motor for drilling large holes easily.
-
Overload durability: Comparison of the torques when the motors burn out, based on the durability index of the previous model taken as 100. (The values are for reference purposes. They vary according to conditions.)

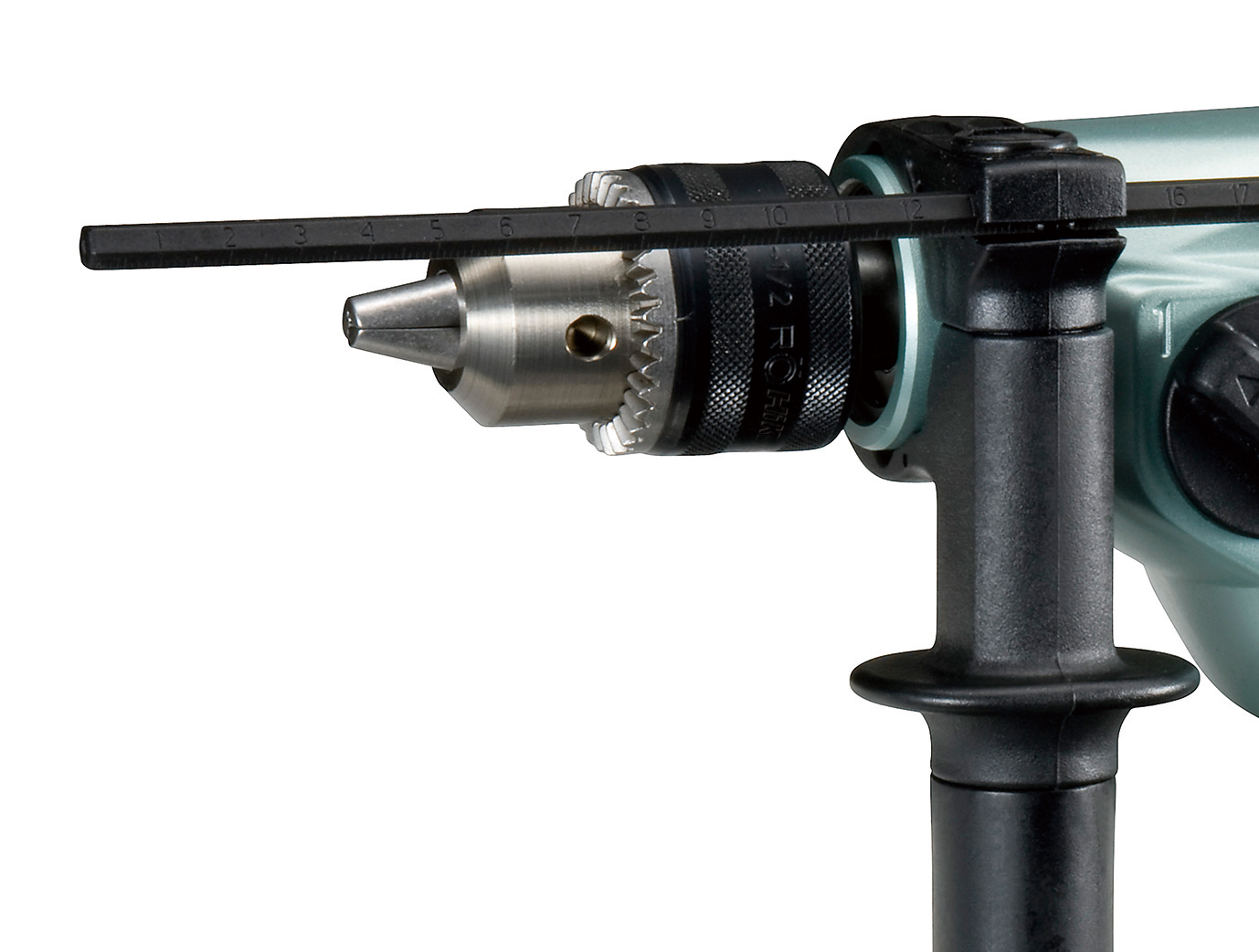

Double-molded side handle
-
Soft and easy to grip for comfortable operation.
Slip clutch
-
causes the gears between the motor and drill bit to slip when an excessive load is suddenly applied, resulting in less reaction force.
High / low gear shift dial
Soft grip handle for more comfort and control.
Specifications
| Drill Chuck | 1.5 - 13mm (1/16 - 1/2") | |
|---|---|---|
| Capacity | Steel | Hi : 8mm (5/16") / Lo : 13mm (1/2") |
| Wood | Hi : 25mm (1") / Lo : 40mm (1-9/16") | |
| Power Input | 860W | |
| No Load Speed | Hi : 0 - 3,000/min / Lo : 0 - 1,100/min | |
| Overall Length | Keyed Chuck | 363mm (14 - 9/32") |
| Keyless Chuck | 361mm (14 - 7/32") | |
| Weight * | 2.9 kg (6.6 lbs.) | |
| Standard Accessories | Chuck Wrench (Spec. only for keyed chuck), Side Handle, Depth Gauge | |
- Weight: According to EPTA-Procedure 01/2003.
Note: Manufacturer reserves the right to change specifications of parts and accessories without notice. Specifications and standard accessories may vary from country to country.
