24mm (15/16") Rotary Hammers DH24PH2 / DH24PG2

  • 24mm Rotary Hammers DH24PH2

    DH24PH2

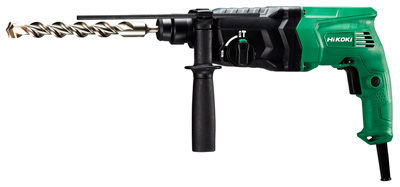

  • 24mm Rotary Hammers DH24PG2

    DH24PG2

Increased Durability

Approximately 2 times longer life *1 achieved by reliable structure that includes a hammering mechanism same as our large hammers.

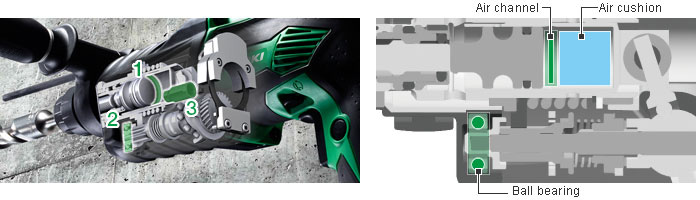

High-durability hammering mechanism

1. Hammering mechanism features air channel system （NEW）
Up to 50% more volume of air cushion *1 reduces wear and damage inside cylinder.
2. Ball bearings （NEW）
Ball bearing seals in grease and holds temperature low to protect melt down of gear cover.
3. New internal pressure control mechanism （NEW）
Provides smooth airflow in or out of the gear cover to stabilize and ensure hammering action.

Located on the side of the tool body for easy operation!

Large change lever （NEW）

  •   Rotation Only
     For drilling in steel or wood, etc.
      (with optional drill chuck and chuck adapter)


      Rotation + Hammering
     For drilling into concrete, etc.


      Hammering Only
     (3-mode models only)
     Chiseling of concrete or groove digging, etc.

    Large change lever

  • Angle adjustment function (3-mode models only)
    When using a cold chisel or cutter, the orientation of the tool tip can be adjusted by setting the change lever as shown on the left.

    Angle adjustment function

Simple bit mounting

One-push action for quick bit mounting

  • A bit can be mounted by simply inserting it into the tool holder.

    Simple bit mounting

Specifications

Model DH24PH2 DH24PG2
Capacity: Concrete 3.4 - 24mm (1/8" - 15/16")
Capacity: Steel 13mm (1/2")
Capacity: Core bit 25 - 50mm (1" - 2")
Capacity: Wood 32mm (1-1/4")
Power Input 730W
Bit Shank SDS-plus
No-Load Speed 0 - 1,050min-1
Full-Load Impact Rate 0 - 3,950min-1
Overall Length 367mm (14-7/16")
Weight (excluding cord) *2 2.8kg (6.0lbs.)
Vibration Total Values
(triax vector sum) *3
Hammer drilling into concrete		 Vibration emission value
ah, HD = 14.5m/s2
Uncertainty K = 1.5m/s2
Vibration Total Values
(triax vector sum) *3
Equivalent chiselling value		 Vibration emission value
ah, CHeq = 11.1m/s2
Uncertainty K = 1.5m/s2		   —
Standard Accessories Side Handle, Depth Gauge, Carrying Case
  1. In comparison with conventional models DH24PC3 / DH24PB3
  2. Weight: According to EPTA-Procedure 01/2003.
  3. The tri-axial vibration values were measured according to EN60745-2-6.

Note: Manufacturer reserves the right to change specifications of parts and accessories without notice. Specifications and standard accessories may vary from country to country.
