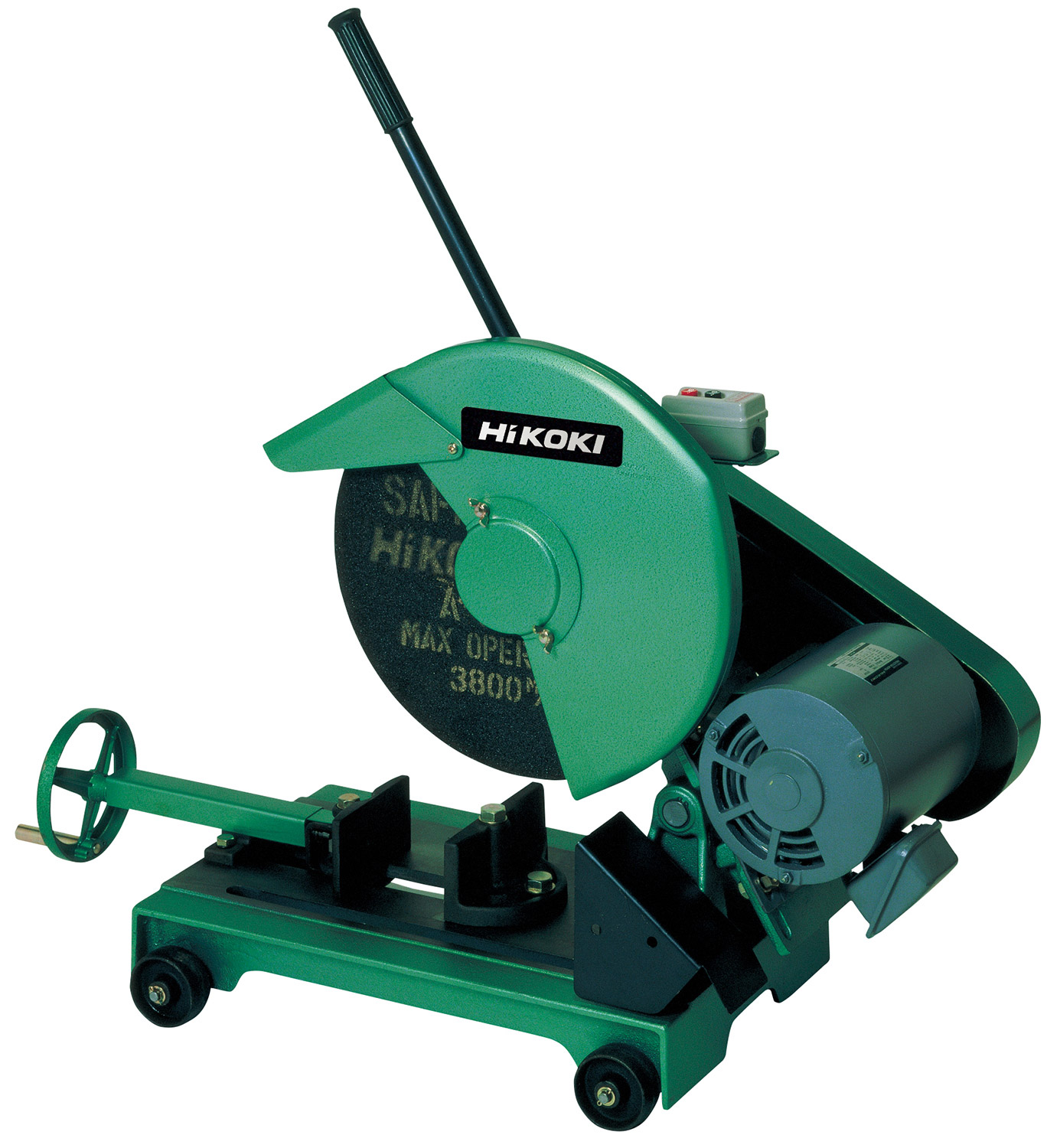

405mm (16") High-Speed Cut-Off Machines CC16SB
Features
- Induction motor
- 2 kinds of spec: Power output 2,200W or 3,700W
Specifications
| Capacity: Bar Dia. | 75mm (3") |
|---|---|
| Capacity:Pipe Dia. | 130mm (5-1/8") |
| Capacity:Shaped Steel | 110 x 110mm (4-3/8 x 4-3/8") |
| Power Output | 2,200W or 3,700W |
| No Load Speed : at 2,200W: 50Hz | 2,290/min. |
| No Load Speed : at 2,200W: 60Hz | 2,730/min. |
| No Load Speed : at 3,700W: 50Hz | 2,430/min. |
| No Load Speed : at 3,700W: 60Hz | 2,900/min. |
| Dimensions (W x L x H) | 424 x 894 x 965mm(16-11/16 x 35-3/16 x 38") |
| Weight | 86.0kg (189.0 lbs.) for 2,200W spec, 96.0kg (211.5 lbs.) for 3,700W spec |
| Standard Accessories | Cut-off Wheel, Wrenches |
Note: Manufacturer reserves the right to change specifications of parts and accessories without notice. Specifications and standard accessories may vary from country to country.
